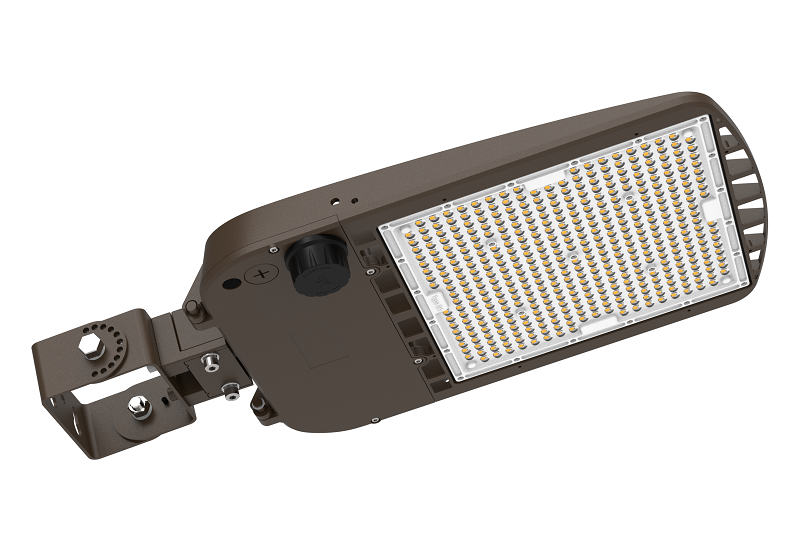

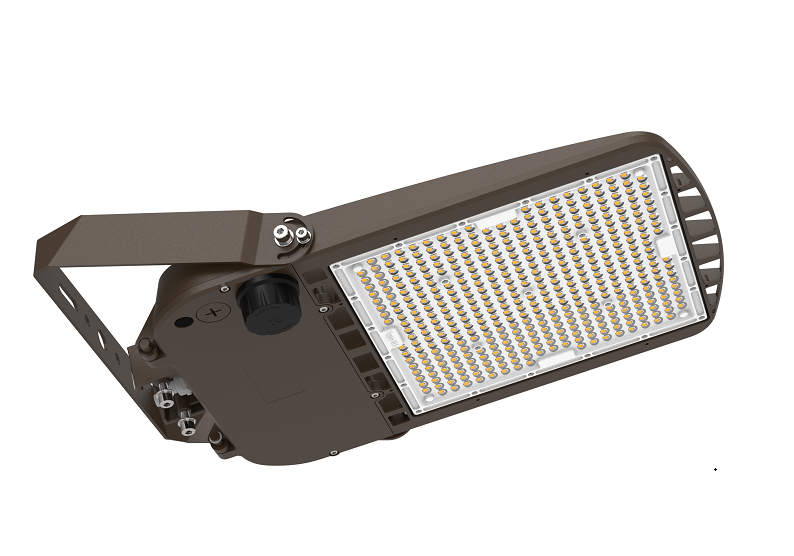

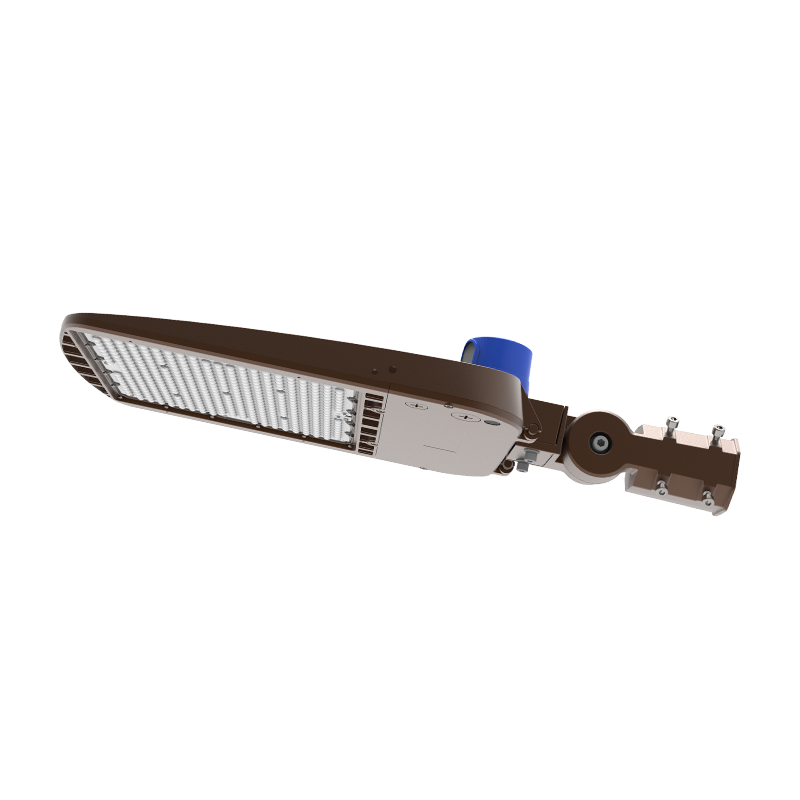

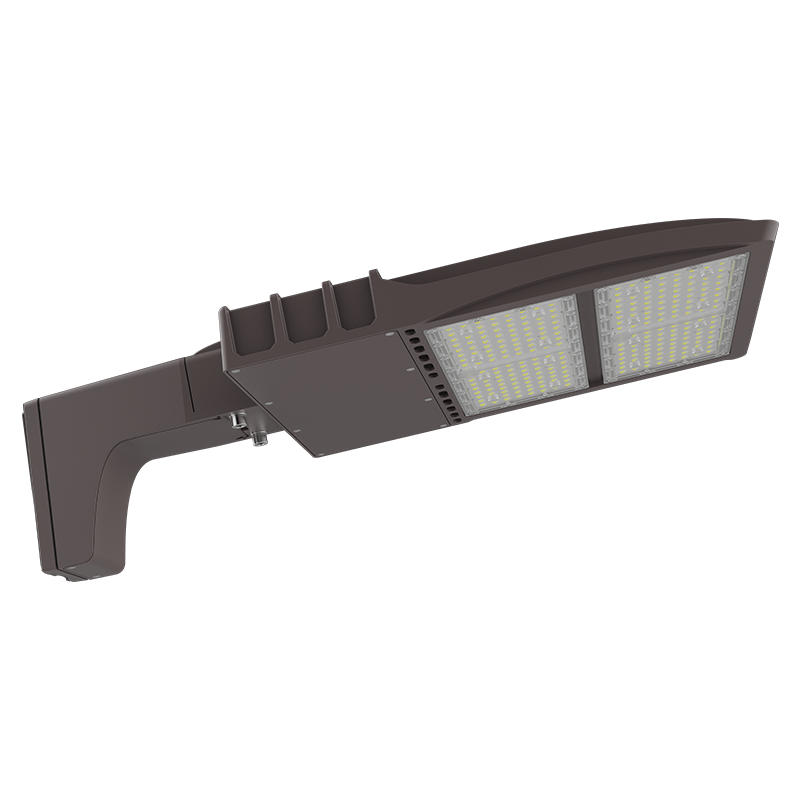

This Area light features outstanding photometric performance, uniform illumination, low-profile design, high efficacy, long lifespan, and easy installation. The one piece die-cast aluminum housing with UV resistant powder coatfinish offers outstanding corrosion protection. Ideal for use in various commercialenvironments, such as auto dealerships, parking lots, walkways, roadways, campuses, facade lighting, grocery stores and other public areas.
| Products Code |
SS-AR05-100W-H-XXK-Y |
SS-AR05-150W-H-XXK-Y |
SS-AR05-200W-H-XXK-Y |
SS-AR05-240W-H-XXK-Y |
SS-AR05-300W-H-XXK-Y |
SS-AR05-150/100/70W-H-TCP(30/40/50)-Y |
SS-AR05-300/240/200W-H-TCP(30/40/50)-Y |
| Electrical |
Power |
100W |
150W |
200W |
240W |
300W |
150/100/70W |
300/240/200W |
| Voltage |
AC100-277V, 50/60Hz, 347V, 480V Option |
| Light source |
SMD2835, Ra>80, 50,000hours |
| Efficancy |
130LPW |
| Color temp. |
3000/4000/5000K |
| Driver |
Brand Driver, PF>0.9, THD<20%, Surge Protection 6KV/6KV, 10KV/20KV Option |
| Dimmable |
0-10V dimming |
| Optical |
Diffuser |
PC |
| Beam angle |
TYPEⅢ-M / TYPEⅣ-S / TYPEⅤ-S |
| Construction |
Housing Material |
Die-cast Aluminum ( Finshing BROWN or BLACK) |
| Option |

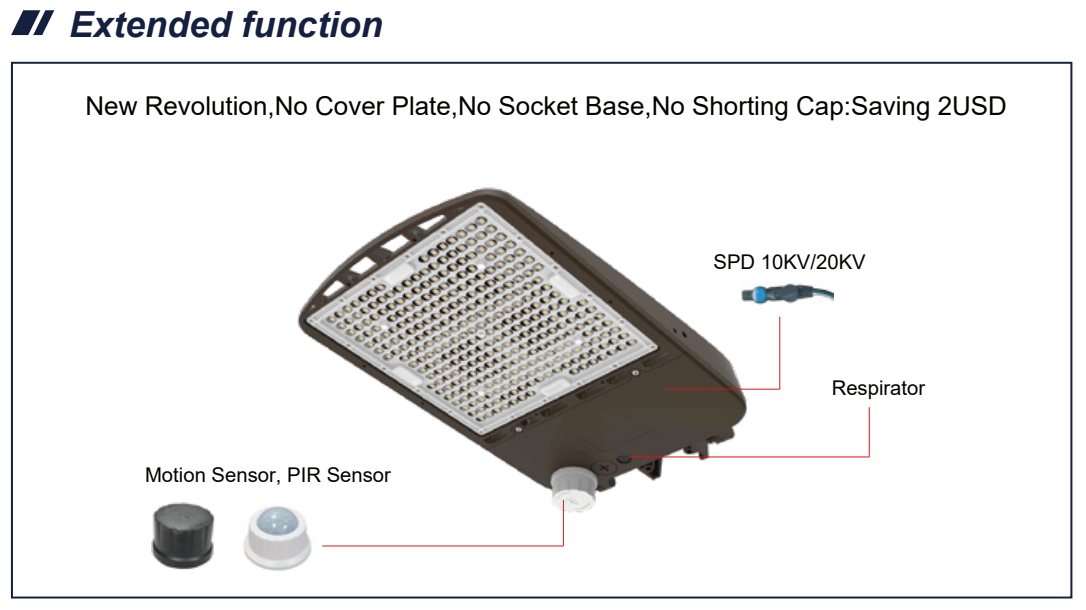

Photocell Sensor, PIR Sensor, Mircomave sensor, Zhaga sensor, Sensor base +DC12V Option |

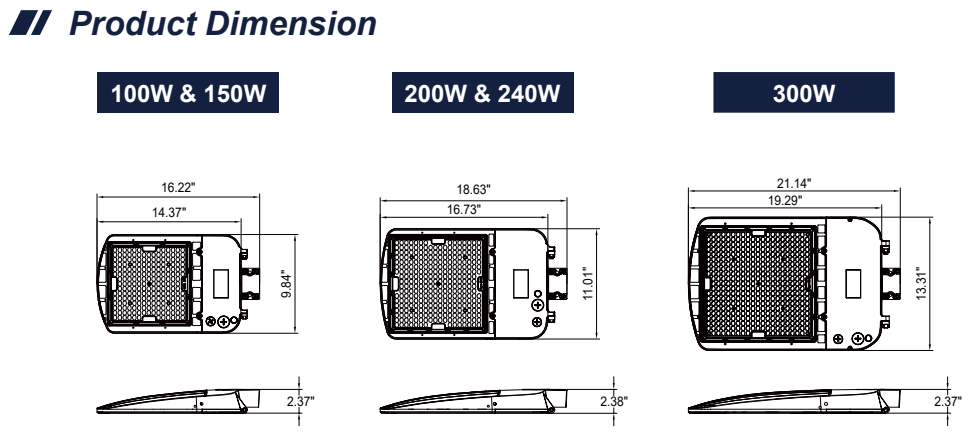

| Dimension |
16.22" x 9.84" x 2.37" |
18.63" x 11.01" x 2.38" |
21.14" x 13.31" x 2.37" |
16.22" x 9.84" x 2.37" |
21.14" x 13.31" x 2.37" |
| Mounting |
Installation |

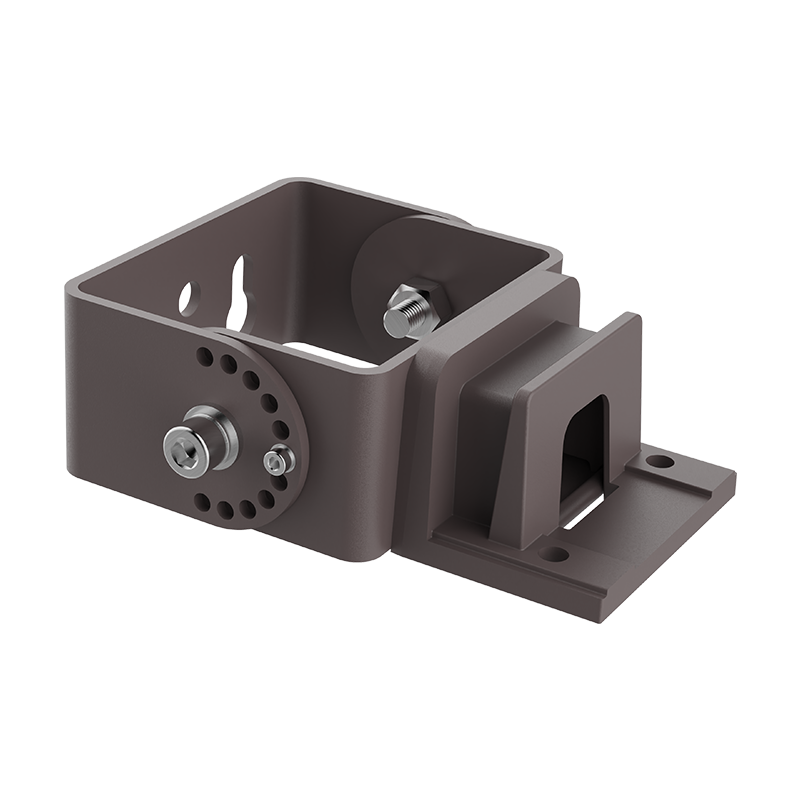

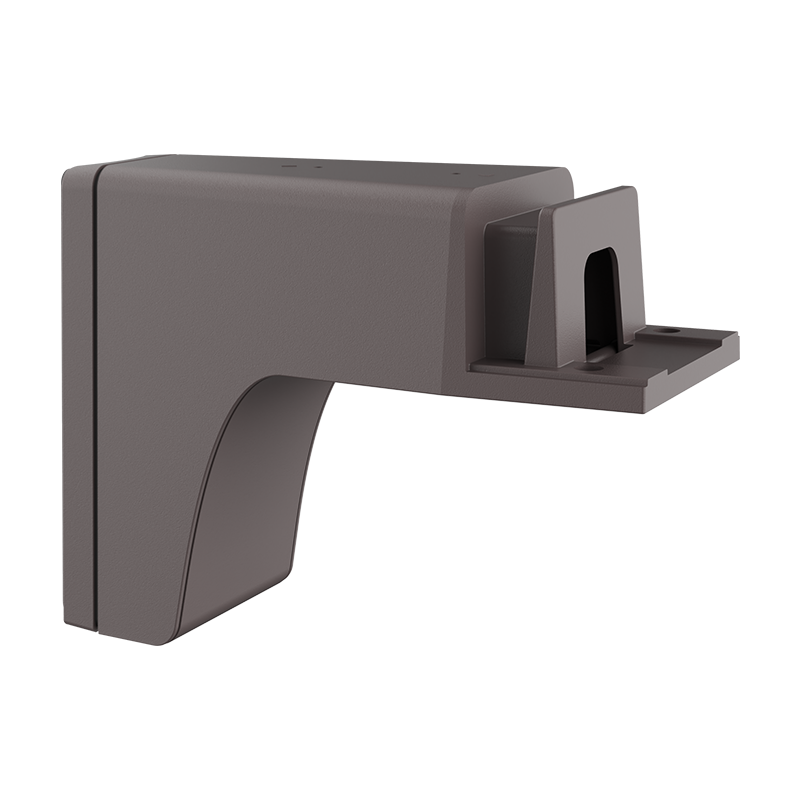

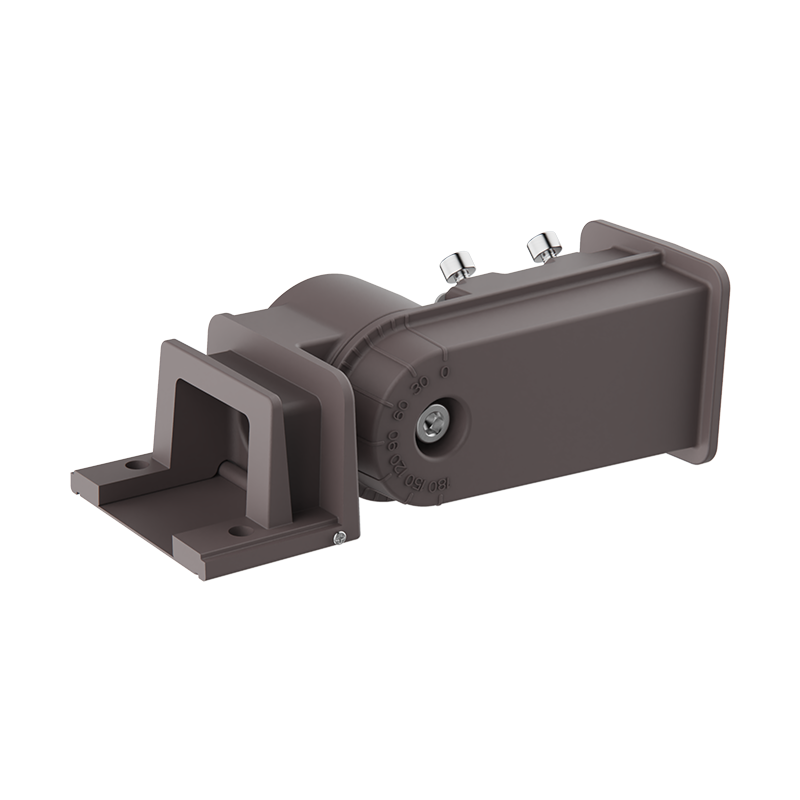

Slip-fitter, Wall mount, Yoke, Trunnion |
| Warranty |
Certification |
UL, DLC 5.1 Premium |
| Warranty |
5 Years |
AR05 Area Light features:1.High efficiency LED Driver, the wide range input voltage 100-277VAC & 277-480VAC.
2.Lumileds LED high luminous efficiency and long life.
3. Cast aluminium design, better cooling and easy replacement, light quality,LEDTj<185°F.
4. Excellent optical design, greatly improve the light utilization and evenness.
5. Photocell ControlAvailable (Option).

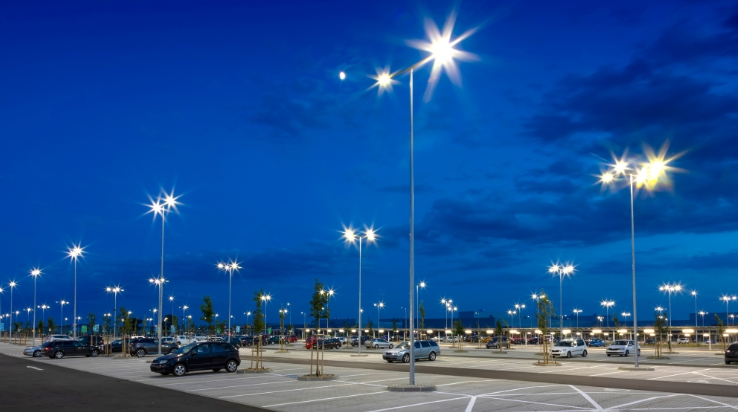

Application:
