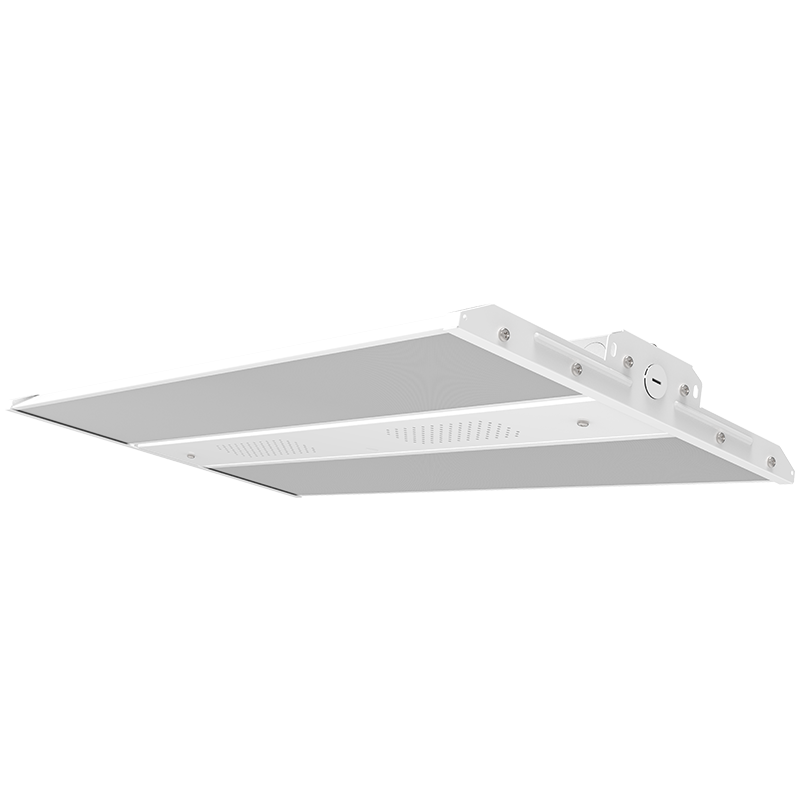

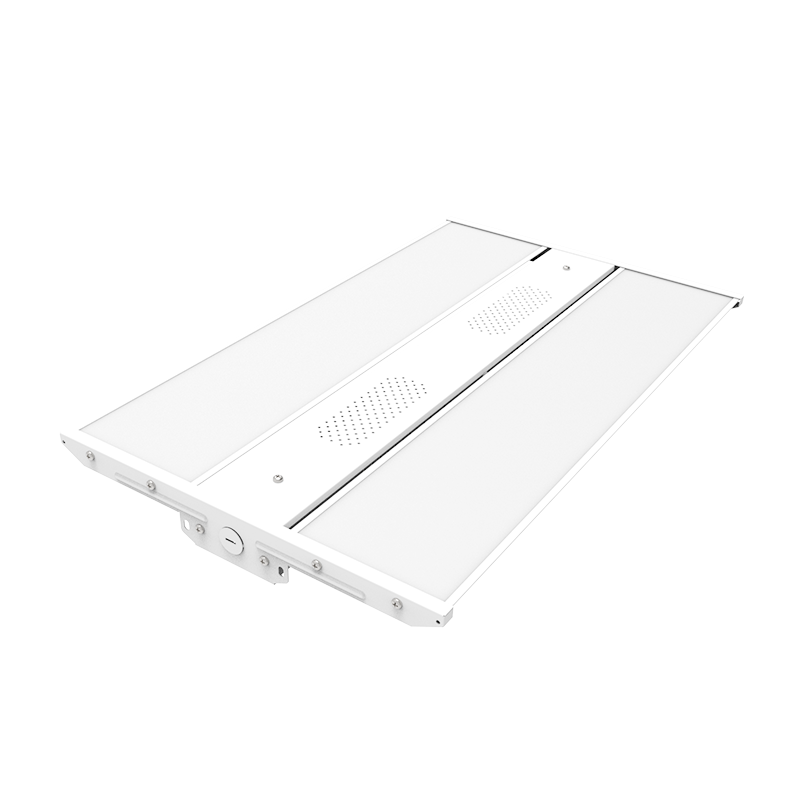

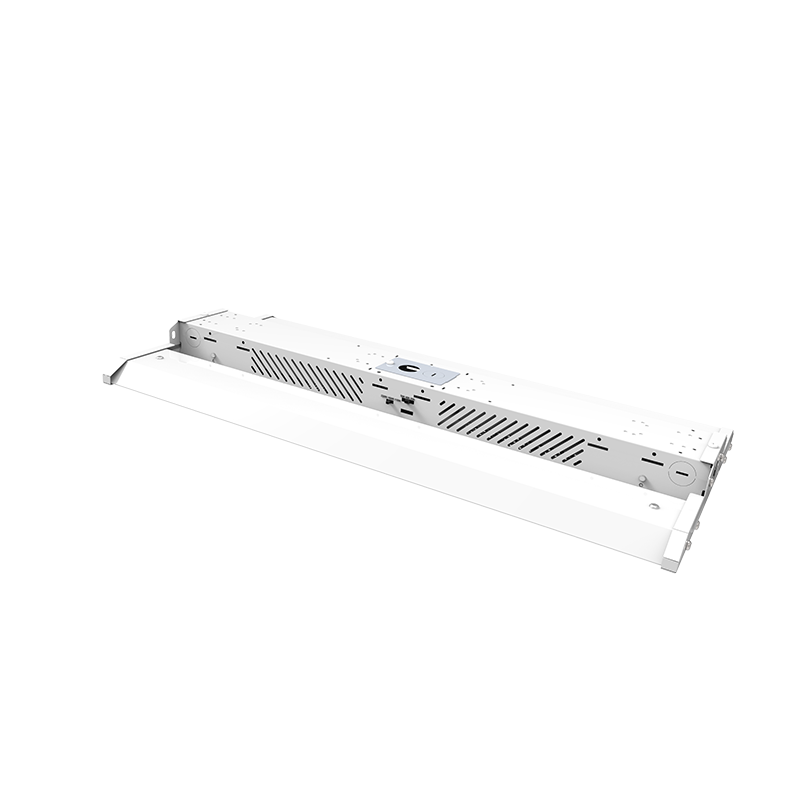

Toptierleds Linear highbay lights LHB06 is a powerhouse, ranging from 1 to 4 feet, offering 80 to 400 watts – fully customizable to fit your unique space.
Available flexibility to choose your color temperature and wattage. It's UL/DLC Premium Rated, delivering top-notch performance with an impressive efficiency of 150 Lumens per Watt.
No more annoying flicker – our Flicker-Free Technology keeps things smooth. Plus, it's adaptable to different voltages, from 120V to a robust 480V.
Here's the smart part – it comes with motion sensor options for energy savings and an emergency backup to ensure continuous lighting during outages.
Versatility is the name of the game! Whether it's lighting up a warehouse, a retail store, a gym – you name it, our Linear High Bay has got it covered.
| Products Code |
SS-LHB06-L3-165/110/80W-H-TX(XX)-Y |
SS-LHB06-L3-220/165/110W-H-TX(XX)-Y |
SS-LHB06-300W-H-TX(XX)-Y |
SS-LHB06-400W-H-TX(XX)-Y |
| Electrical |
Power |
165/110/80W |
220/165/110W |
300/220/165W |
400/300/220W |
| Voltage |
AC120-277V 50/60Hz, 347V available |
| Light source |
SMD2835, Ra>80, 50,000hours |
| Efficancy |
150LPW |
| Color temp. |
3500/4000/5000K Adjustable |
| Driver |
PF>0.9, THD<20%, Flicker Free Technology, 6KV/6KV |
| Dimmable |
0-10V dimming, and DC12V Option |
| Optical |
Diffuser |
PC |
| Beam angle |
120° |
| Construction |
Housing Material |
Metal plate ( Housing Finishing White) |
| Option |
Wire Guard, Sensor, Emergency Driver |
| Dimension |
12.8” x 23.76” x 2.08” |
12.8” x 35.34” x 2.08” |
12.8” x 45.67” x 2.08” |
| Mounting |
Installation |
Suspending Chain Mounting, Pole Pandent Mounting |
| Warranty |
Certification |
UL, DLC, FCC |
| Warranty |
5 Years |
- Durable cold rolled steel housing provides strength and uniformity. Luminaire is pre-painted to enhanced smooth finish
LEDs:
- Long-life, high-efficacy 150lpw,
- 50,000hours LED lifespan based on IES LM-80 results and TM-21 calculations
- CRI>80
Driver:
- Input Voltage: AC120-277V , 50-60 Hz; 347V/480V option
- 0-10V dimming (dim-to-off)
- Flicker free technology
- Power Factor > 0.9, THD < 20% ;
- Surge protected L/N-GND:6 kV, L-N:6 kV
Emergency backup option:
- 8W Built-in Emergency Driver
- 24W Built-in Emergency Driver
Sensor:
- PIR sensor, Motion sensor, BRT sensor, PHB sensor
IP Rating:
- Suitable for Damp Location
Ambient Temperature:
- Suitable for up to 50° C (122° F) ambient temperature (-22°F~122°F) ( -30°C~50°C)
Mounting method:

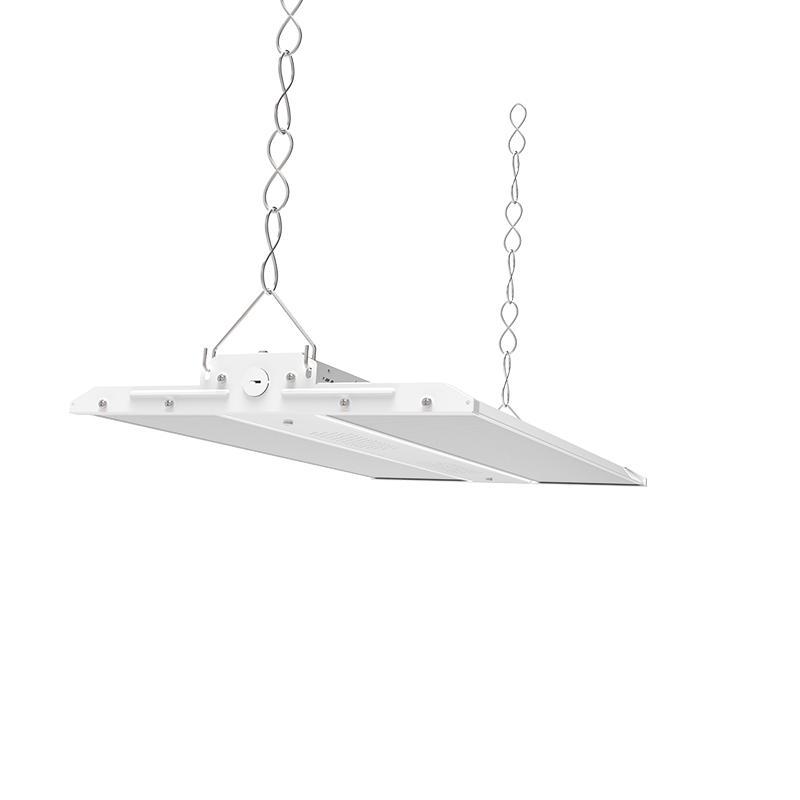

- v-hook with chains (included)
- Surface mounting kit (optional)
- Conduit pendant mounting kit (optional)
Certification:
- UL, cUL
- IESNA LM79 & LM-80 Testing
- DLC
5-Year Limited Warranty

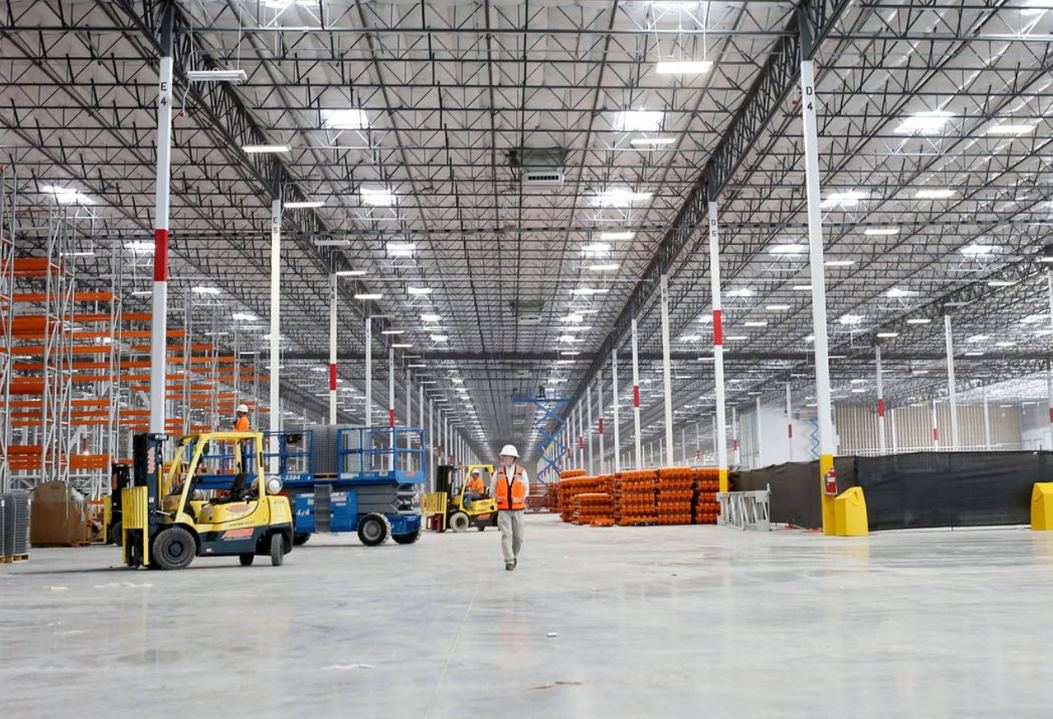

Applications: Perfect commercial or industrial solution for warehouses, supermarkets, retail stores, gyms, and many other applications. This fixture is also Damp Locations rated.
