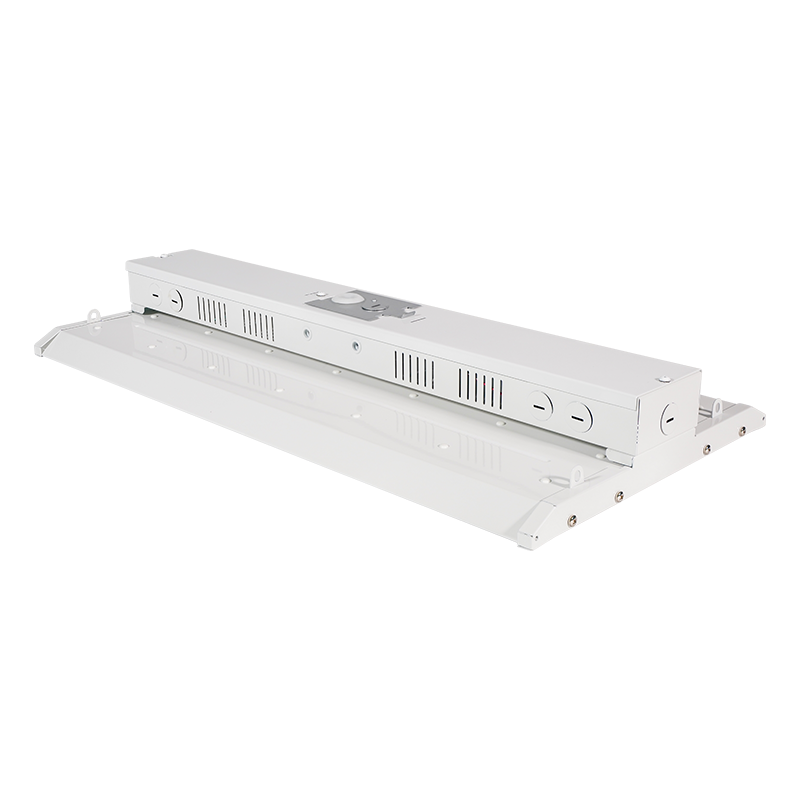

No screws in the front, delivers a strong sense of cleanness. Very similar to the traditional fluorescent linear high bay.The most popular version in North American market .The driver channel is spaced away from the LEDs allowing for better air flow and thermal management.
| Products Code | SS-LHB07-L1-80W-H-XX-Y | SS-LHB07-L1-110W-H-XX-Y | SS-LHB07-L2-160W-H-XX-Y | SS-LHB07-L3-220W-H-XX-Y | SS-LHB07-L5-225W-H-XX-Y | SS-LHB07-L5-300W-H-XX-Y | |
| Electrical | Power | 80W | 110W | 160W | 220W | 225W | 300W |
| Voltage | AC120-277V 50/60Hz, 347V Available | ||||||
| Light source | SMD2835, Ra>80, 50,000hours | ||||||
| Efficancy | 140LPW & 150LPW | ||||||
| Color temp. | 3500/4000/5000K Adjustable | ||||||
| Driver | PF>0.9, THD<20%, Flicker Free Technology, 6KV/6KV | ||||||
| Dimmable | 0-10V dimming, and DC12V Option | ||||||
| Optical | Diffuser | PC | |||||
| Beam angle | 120° | ||||||
| Construction | Housing Material | Metal plate ( Housing Finishing White) | |||||
| Option | Wire Guard, Sensor, Emergency Driver | ||||||
| Dimension | 11.81” x 23.64” x 2.89” | 14.17” x 23.64” x 2.89” | 14.17” x 45.67” x 2.89” | ||||
| Mounting | Installation | Suspending Chain Mounting, Pole Pandent Mounting, Surface Mounting | |||||
| Warranty | Certification | UL, DLC, FCC | |||||
| Warranty | 5 Years | ||||||
Toptierleds new generation LHB07 Linear highbay light major features:
Great design, quality driver and meaningful and extensive experience for producing Linear HB for years ensures very low defective ratio (< 0.2%).
Appearance:

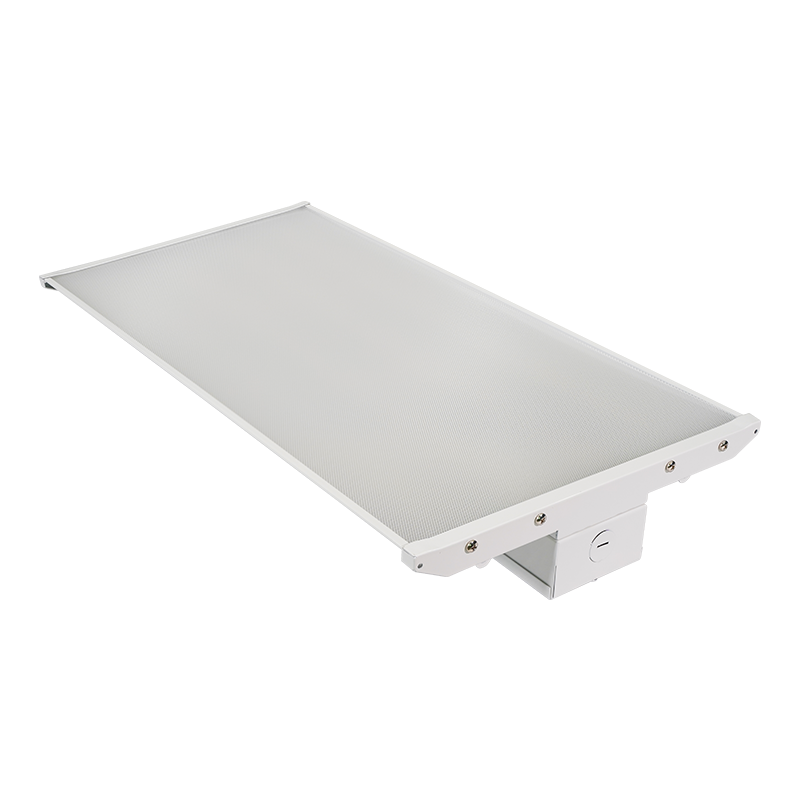

No screws in the front, delivers a strong sense of cleanness.
Power:
2ft:160W MAX & 220W MAX available ;
4ft: 225W, 300W
LEDS:
High efficancy 140lm/w & 150lm/w;
Driver:
0-10V dimming; PF＞0.90, THD<20%;
Two solutions for EM version:
1. Pre-installed in the factory.
2. Installed in the fifield easily.
Sensor:
PIR and Motion sensor for option.
Installation:
Suspending Chain Mounting, Pole Pandent Mounting, Surface Mounting
Certificate:
UL, DLC5.1 Premium, FCC
Suitable for dry/damp location;
Power tunable and CCT switchable available:
2ft: 160/110/80W
2ft: 220/160/110W
Color: 3500K/4000K/5000K
Application:

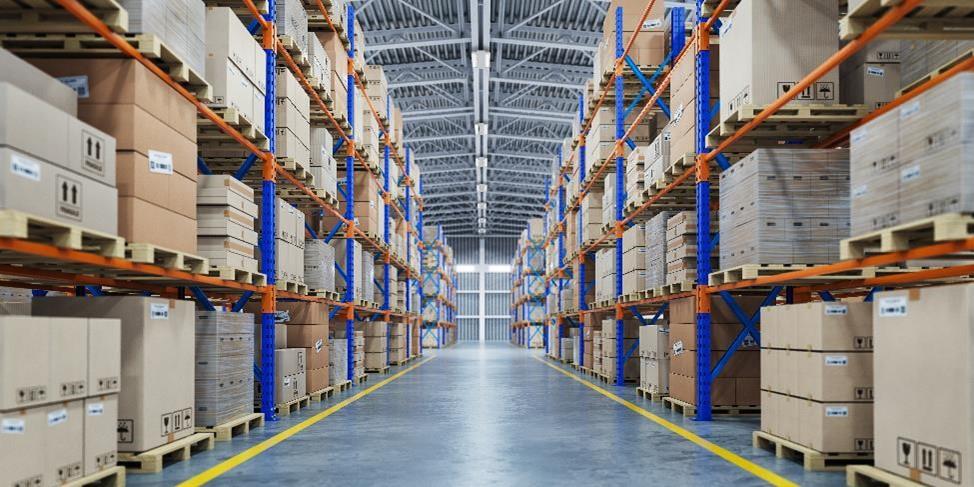

Designed for warehouses, gymnasiums, and industrial spaces etc;
