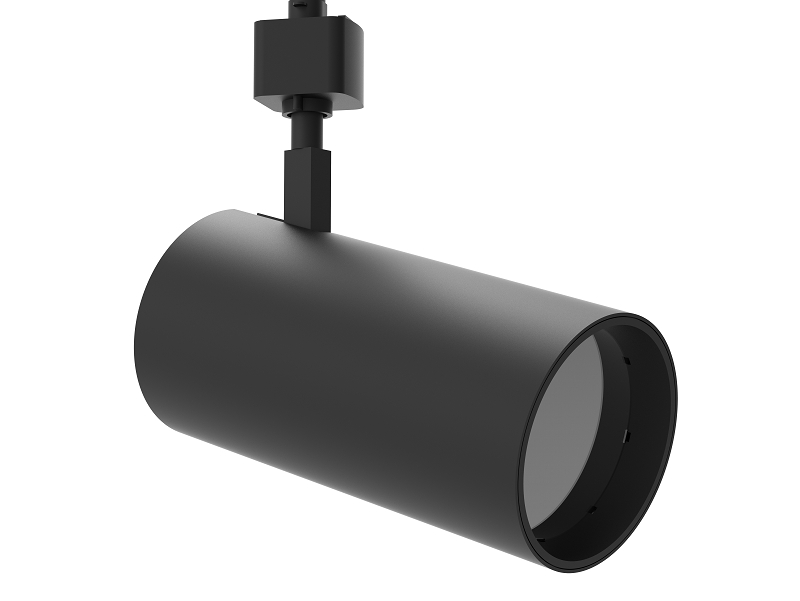

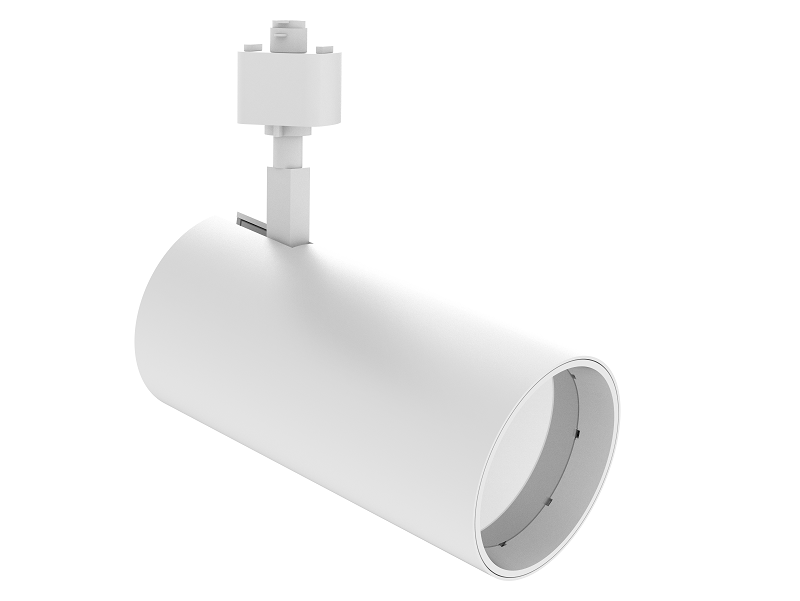

Architectural TL02 Track light meet the emphasis lighting requirements of residential and retail Spaces. Choose from rail mounting, suspension. Cold-forge Aluminium Housing body, electrostatic paint white or black. Four different lenses are Spot: 18°, Narrow Flood: 24°, Flood: 36°, Wide Flood: 60°. Includes high power factor LED dimming drivers. Available in 5 color temperatures, and 3 lumen output adjustable saving SKU 15 IN 1.
Product Parameter
| Products Code |
TT-TL02-10W-XXK-YY-X-Z |
TT-TL02-15W-XXK-YY-X-Z |
TT-TL02-20W-XXK-YY-X-Z |
TT-TL02-25W-XXK-YY-X-Z |
TT-TL02-30W-XXK-YY-X-Z |
| Electrical |
Power |
10W |
15W |
20W |
25W |
30W |
| Voltage |
AC120V |
| Light source |
SDCM<3, CRI>90 |
| Efficancy |
90lpw/110lpw |
| Color temp. |
2700K/3000K/3500K/4000K/5000K |
| UGR |
<19 |
| Dimmable |
Triac Dimming |
| Optical |
Diffuser |
Reflector |
| Beam angle |
18/24/36/60° |
| Construction |
Housing Material |
Cold-forge aluminum housing (White/Black) |
| Aiming |
350° horizontal • 90° vertical |
| Dimension |
Ø50*134/ 1.97’’x5.28’’ |
Ø62*171 / 2.44’’x6.73’’ |
Ø72*175 / 2.83’’x6.89’’ |
Ø80*186 / 3.15’’x7.32’’ |
| Mounting |
Installation |
H-Type, J-Type Adapter Available |
| Warranty |
Certification |
ETL, DLC |
| Warranty |
5 Years |
Product Dimension:
Power:
Color:
2700K/3000K/3500K/4000K/5000K, 5 CCT Selectable
Driver Hosuing:
High quality Cold-forge Aluminium Housing better for heat dissipation, available white & black finishesLEDs:
90+CRI with 3-step MacAdam Ellipse
120lm/w high Energy-efficient consume less energy, resulting in lower electricity bills
50,000 hours long lifespan reducing the need for frequent bulb replacements
Adapter:
Compatible with H-type track adapter, J-type track adapter, L-type track adapter, Global track adapter, suitable for all your projects requirements.
H type and J-type track adapter are interchangeable
Luminaire Arm:
90° tilt and 350° rotation adjustable
Beam Angle:
Spot: 18°
Narrow Flood: 24°, 25°
Flood: 36°, 38°
Wide Flood: 60°
Application:
Recommended Use for Retailers, Supermarkets, Restaurants, Shopping Mall, Grocery, Hospitality, Commercial, Residential, Exhibit etc.
