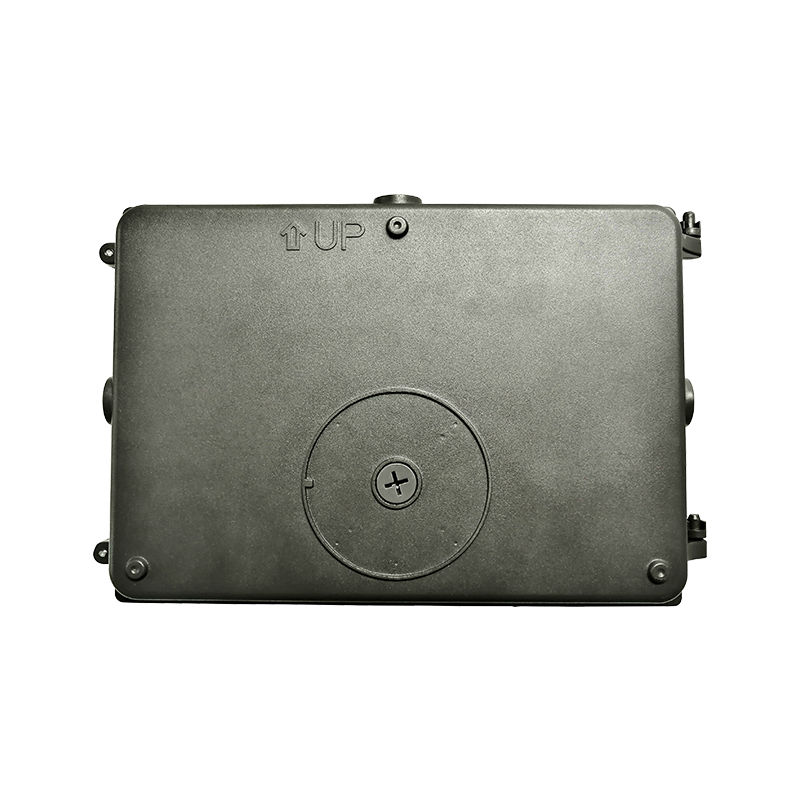

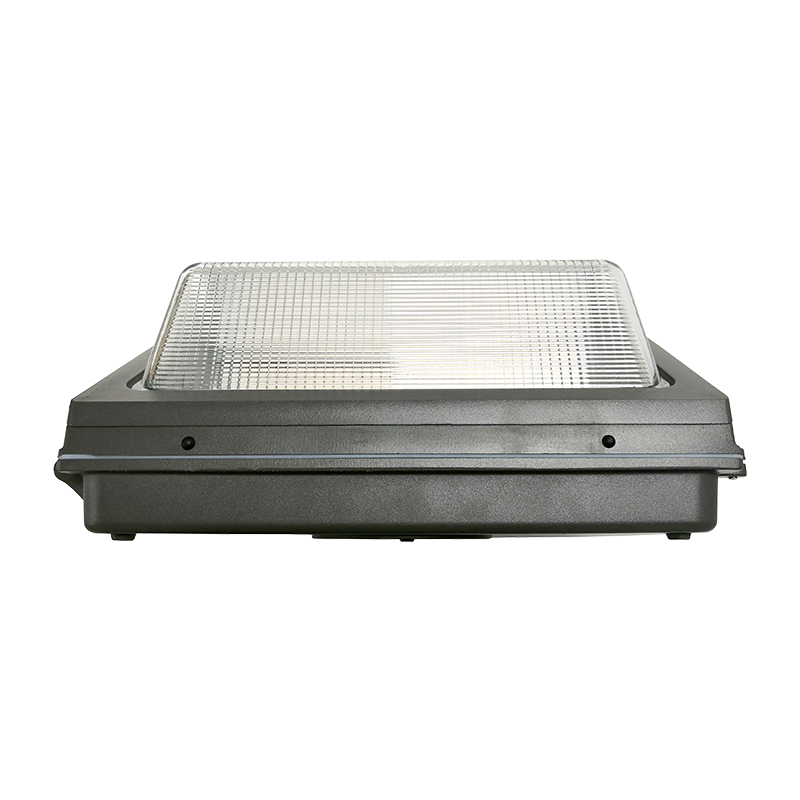

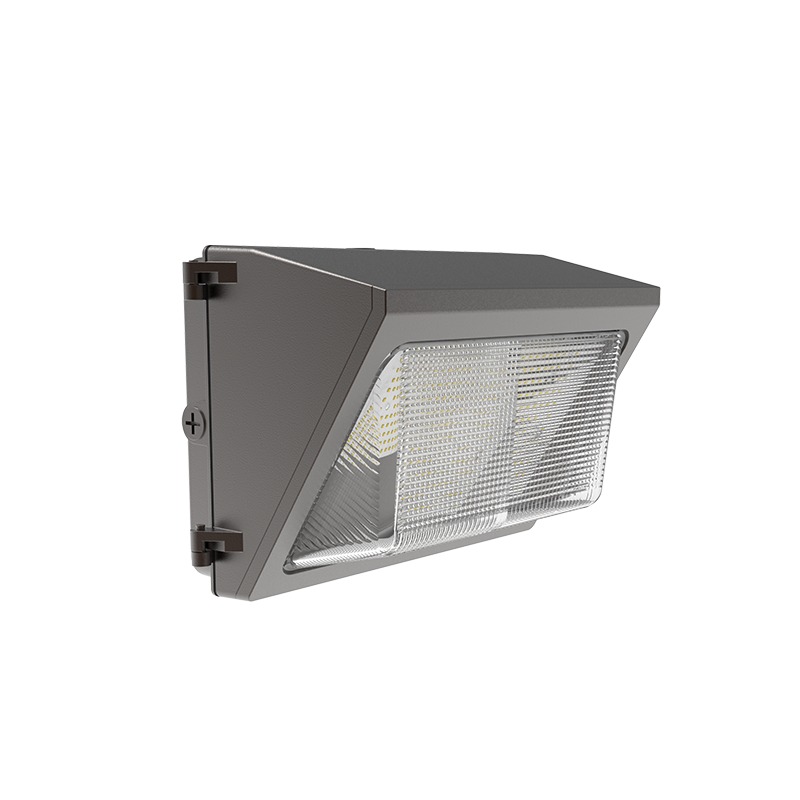

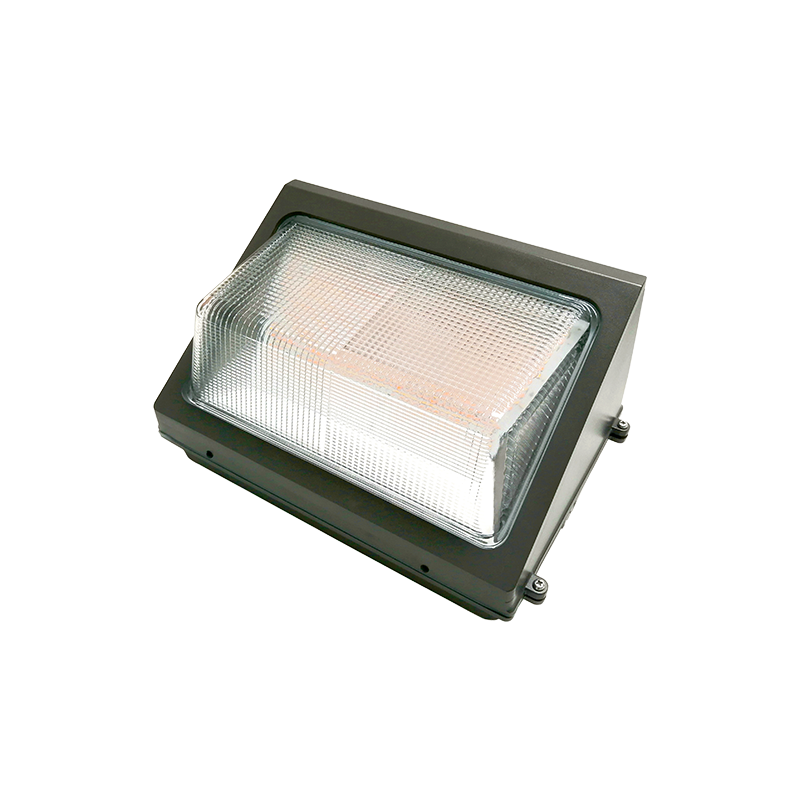

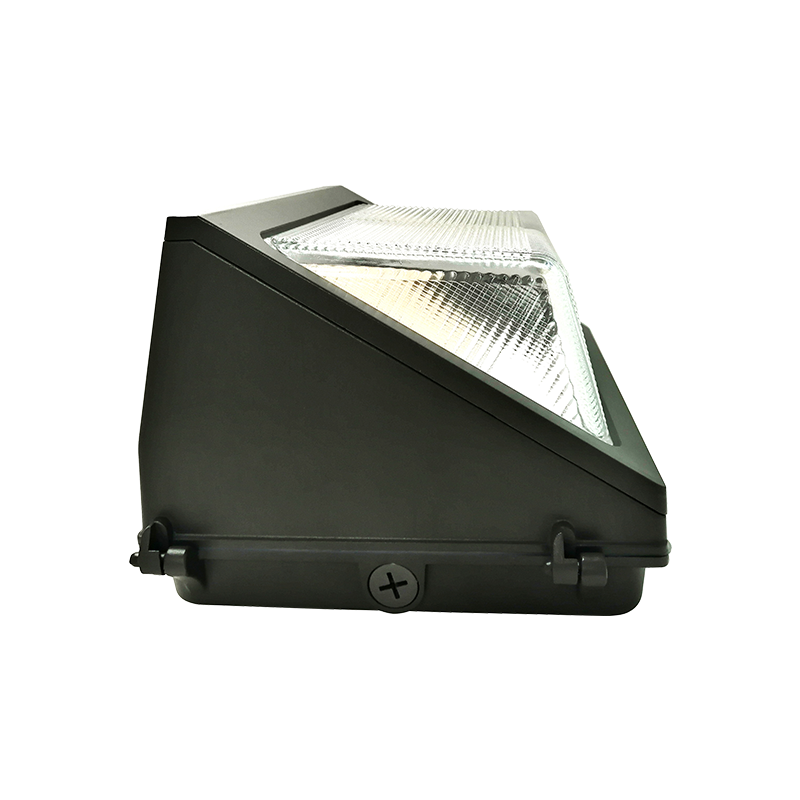

LED Wall Packs

No.: WK04
Replacing metal halide fixtures with WK04 series LED wall pack increases energy efficiency and lowers maint enance costs. Rugged die-cast aluminum housing is powder coated, while durable glass lens is UV-stabilized to withstand conditions of outdoor industrial or commercial locations.
Power:
40W, 60W, 80W, 100W, 120W Selectable
Color:
3000/4000/5000K Selectable
Voltage:
AC 120-277V, 347V
Driver:
PF>0.9, 0-10V Dimming
LEDs:
SMD2835, Ra>80
IP Rate:
Ip65, Wet Location
Certificate:
UL, DLC
Warranty:
5 Years
  • LED Wall Packs
  • LED Wall Packs
  • LED Wall Packs
  • LED Wall Packs
  • LED Wall Packs

Description

Replacing metal halide fixtures with WK04 series LED wall pack increases energy efficiency and
lowers maint enance costs. Rugged die-cast aluminum housing is powder coated, while durable
glass lens is UV-stabilized to withstand conditions of outdoor industrial or commercial locations.

Using an isolated, 0-10V dimmable driver
Protection level: Wet Location:
The wall pack is sealed by silicone ring that can avoid dust completely and be waterproof,
also the internal level ensures that the  installation is horizontal.

With respirator / breather --- maintaining the air pressure in a balance state,  so as to improve the waterproof ability.

1/2” hubs size, ideal for photocell installation.

Wire Guard and Sky Shield available.

Operating Temperature: -40°F~ 113° F ( -40°C ~ 45°C ).

Clean and elegant design--- very convenient for fast installation, saving lots  of labor cost.

No screws in the front, very clean, caters to Americanʼs taste very much.

Outdoor special optical tempered glass lens.

High light transmittance and low light loss.

120-277VAC | 120-347VAC | 277-480VAC available.

IP65.

Power tunable and CCT switchable available
